UHP Grade Graphite Electrode Graphite Electrode Scrap Manufacturer
Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace. Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time
1. Low electric resistance
2. High density
3. Good electrical conductivity
4. High anti-oxidation capability
5. Precise machining accuracy
6. Low sulphur and low ash, not give steel second time impurity
Specification
| UHP Graphite Electrode |
| Item |
Unit |
Diameter |
| Φ300 |
Φ300-Φ350 |
Φ400-Φ500 |
Φ550 |
Φ600 |
Φ650-Φ700 |
| Electric resistivity≤ |
μΩm |
5.50 |
5.50 |
5.50 |
5.50 |
5.50 |
5.50 |
| Flexure strength≥ |
Mpa |
12.00 |
12.00 |
12.00 |
12.00 |
12.00 |
12.00 |
| Modulus of elasticity≤ |
Gpa |
8.00 |
8.00 |
8.00 |
8.00 |
8.00 |
8.00 |
| Bulk Density≥ |
g/cm3 |
1.69 |
1.69 |
1.69 |
1.69 |
1.69 |
1.69 |
| CTE(100-600ºC) ≤ |
x10-6/ºC |
1.40 |
1.40 |
1.40 |
1.40 |
1.40 |
1.40 |
| Ash Content ≤ |
% |
0.30 |
0.30 |
0.30 |
0.30 |
0.30 |
0.30 |
Advantages of Graphite Electrode
* Good oxidation resistance
* High mechanical strength.
* Needle coke content accounts for 80%
* Low electrical resistivity,good electrical conductivity
* Low ash content,Its ash content is controlled within 3%
* Dense and uniform structure,Low graphite electrode consumption
* Annual output of 80,000 tons, timely delivery
Application:
Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steelmaking,Yellow phosphorus furnace , Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment.High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
Service
*Our engineers team know all of the EAF, Ladle, and Foundry applications throughout Asia (Include middleast countries),America and Africa.
*Our engineer team will visit our customer's factory every year, to check and analyse the customers' furnace conditions in order to achieve an optimal performance of the graphite electrodes and a decrease of the specific electrode consumption.
*Other services including train employees,performance analysis, storage in our warehouses, inspection of accessories, and monitoring the furnace.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
|
|

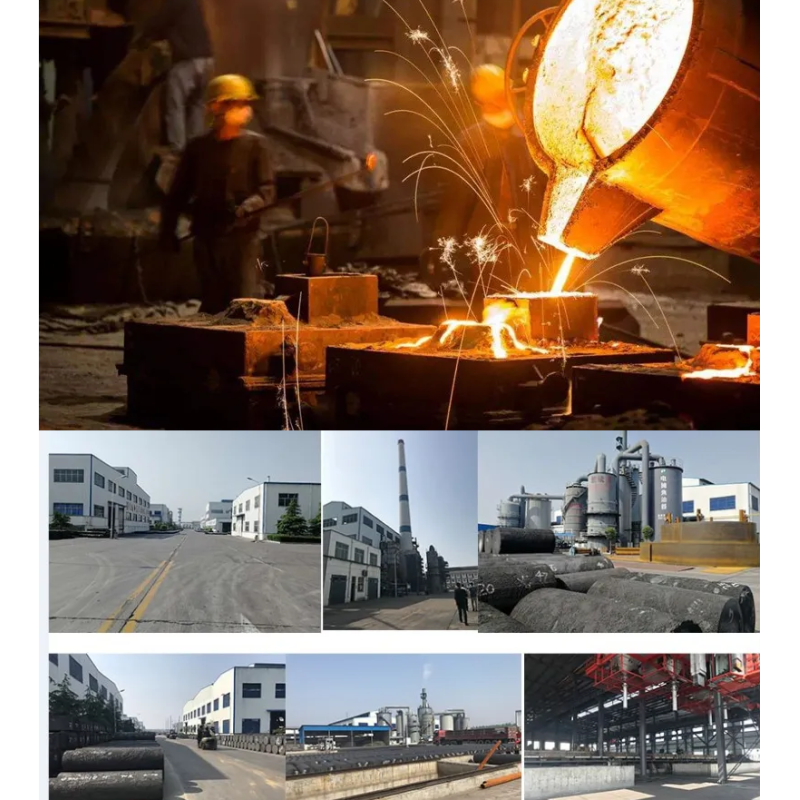

UHP Grade Graphite Electrode Graphite Electrode Scrap Manufacturer Images
|
